2 Color Products
Our company have setting 2 Cylider Injection Machine which can produce two kinds of materials as one cycle by mainly 2 methods, 2 colors of the same Material method and 2 difference type of material method. that can reduce the processing of injection and assembly process too. Did you required a function of products such as a feeling of grip or the permeability and also needs to reduce Products cost, We have an experience of mold making.and produce this products. Please contact us
2 Material Technology

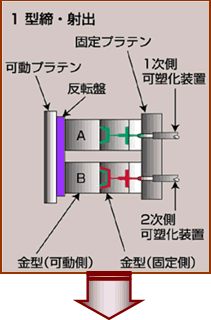

STEP1
Setting 2 sets mold on 2 Cylinder Injection Machine . A and B Mold. Filling Material 1 into A Mold

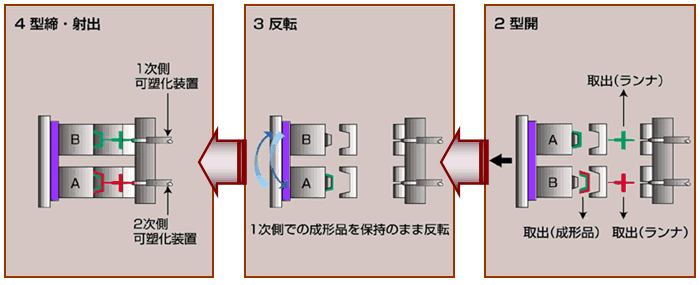

STEP2
Open Mold ( A and B Mold ) Take out runner from A Mold(Figure 3)
STEP3
Turn the secondary side mold (Mold A turn to B and B turn to A )(Figure 4)
STEP4
Close the secondary mold and Filling Material 1 to B mold, Material 2 to A mold. In this step, 2 Material Product is already produce in A Mold .Return to STEP 2 Open the secondary mold, take out runner 2 Material Products is completed and finished 1 Cycle
